Create Test Case Batches

There are multiple ways to trigger automated test cases to run individually in CXTM. Another option is to add test cases to logical groups for batch execution.

Step 1 - Select Test Cases for the System Batch


From your project's Test Cases page:

  1. Click on the checkbox beside all of the Test Cases belonging to Phase 1 (with IDs 1.01 - 1.04)
  2. Click the BATCHES button to launch the Testcase Batches popup

Step 2 - Confirm Batch Options

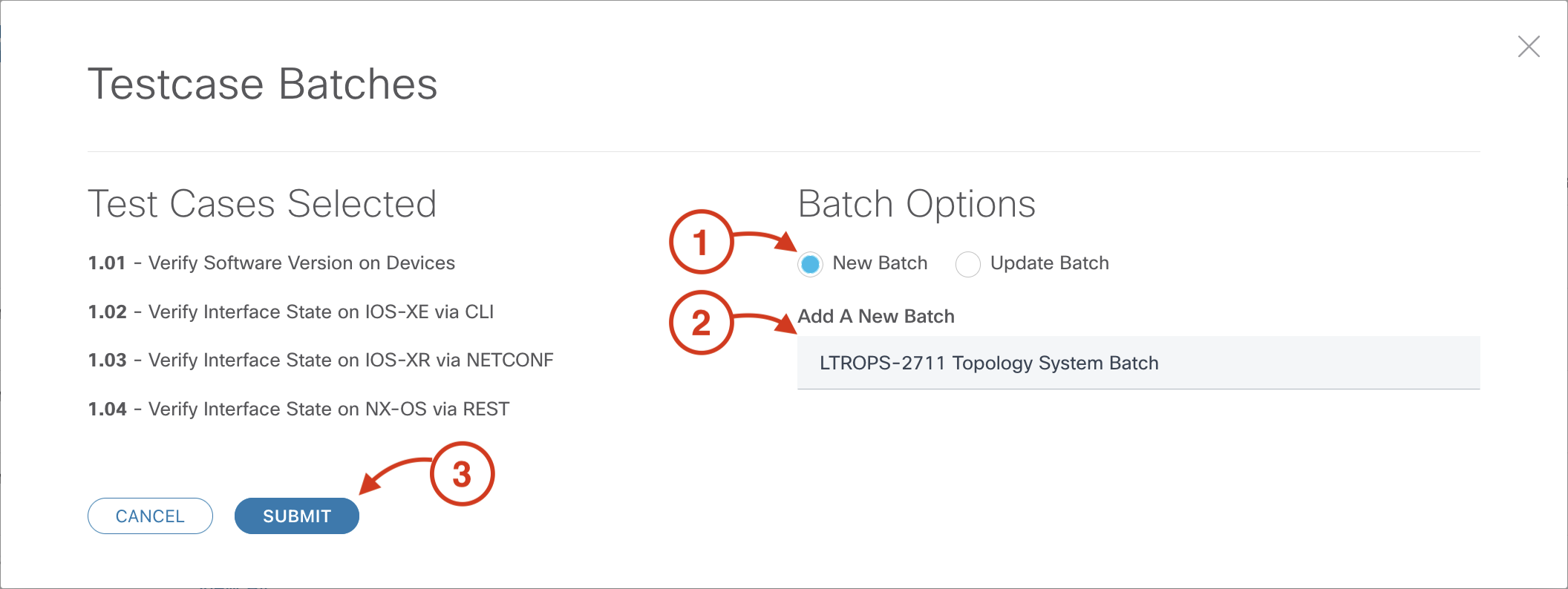

In the Testcase Batches popup, make the following selections:

  1. Confirm that the New Batch radio button is selected
  2. Add A New Batch: LTROPS-2711 Topology System Batch
  3. Click SUBMIT

Step 3 - Collect the Batch ID and save the Batch


From the Project Batch page for :

  1. Collect the batch ID for the LTROPS-2711 Topology System Batch directly from the URL ("356" in this example), and save it in a text file on your local workstation for use in the NetDevOps section.
  2. Confirm that all 4 of your test cases appear under Batch Test Cases
  3. Click the SAVE button

Step 4 - Return to Test Cases Page


From your project's Batches page:

  1. Navigate back to your project home by clicking on the Project LTROPS-2711 tab in the navigation breadcrumbs.



  2. Click on VIEW TEST CASES




Step 5 - Select Test Cases for the Routing Batch


From your project's Test Cases page:

  1. Click on the checkbox beside all of the Test Cases belonging to Phase 2 (with IDs 2.01 - 2.05)
  2. Click the BATCHES button to launch the Testcase Batches popup

Step 6 - Confirm Batch Options


In the Testcase Batches popup, make the following selections:

  1. Confirm that the New Batch radio button is selected
  2. Add A New Batch: LTROPS-2711 Topology Routing Batch
  3. Click SUBMIT

Step 7 - Collect the Batch ID and save the Batch


From the Project Batch page for :

  1. Collect the batch ID for the LTROPS-2711 Topology Routing Batch directly from the URL ("357" in this example), and save it in a text file on your local workstation for use in the NetDevOps section.
  2. Confirm that all 5 of your test cases appear under Batch Test Cases
  3. Click the SAVE button

Continue to the next section to run the batches and review the results.
